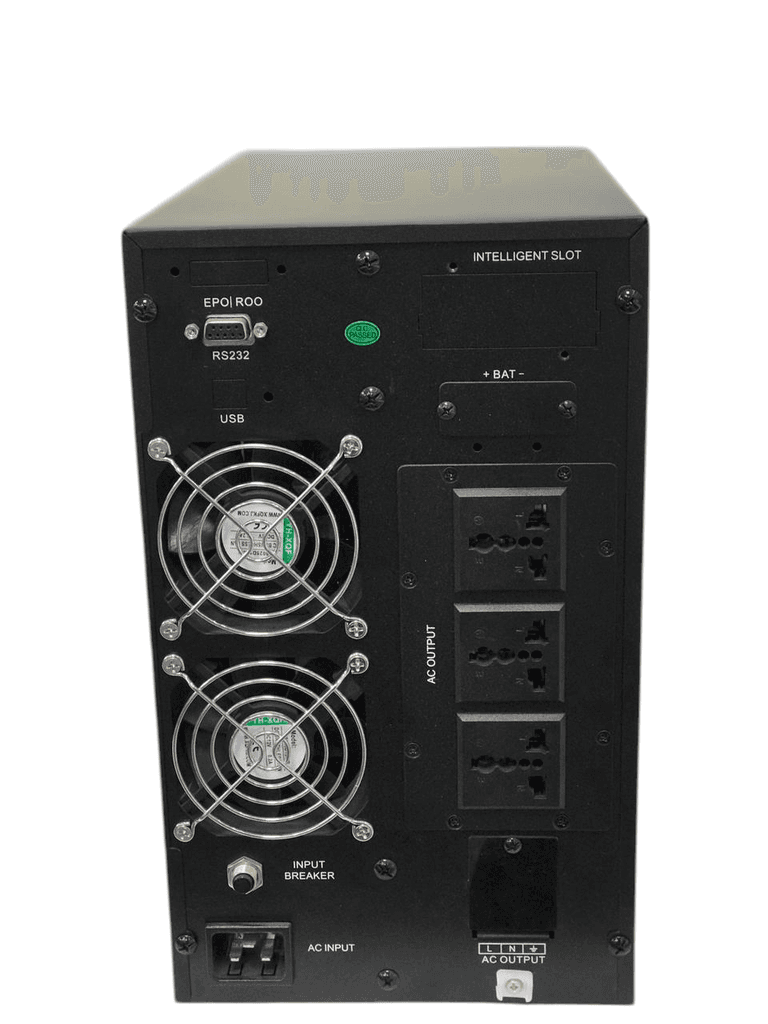

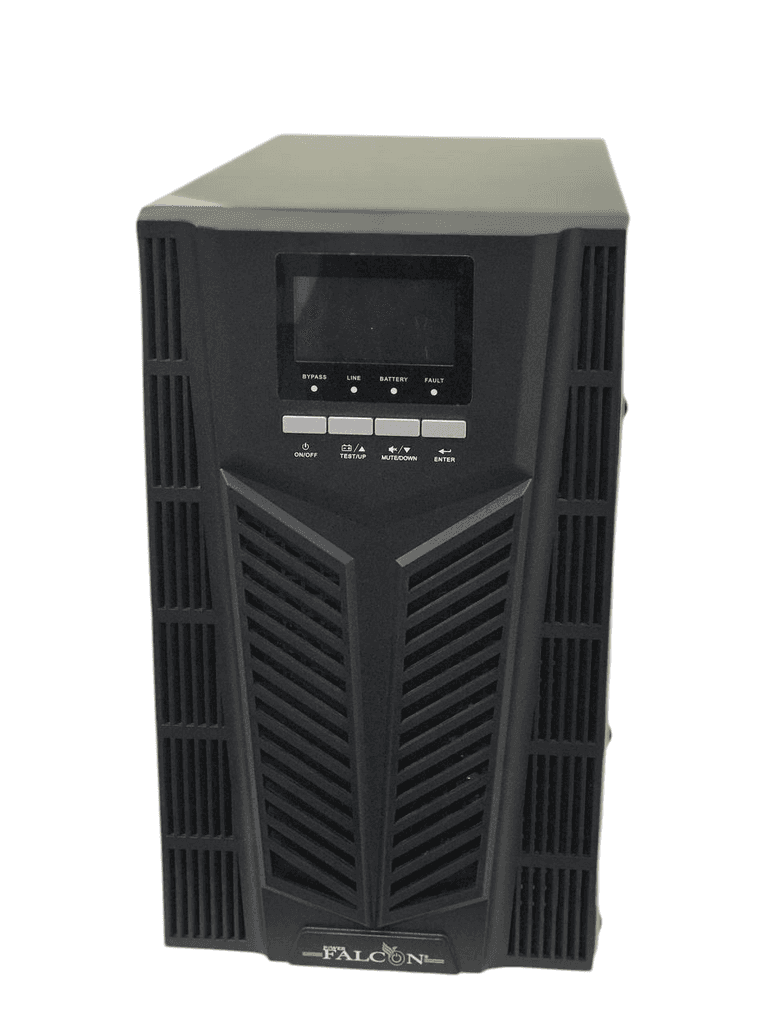

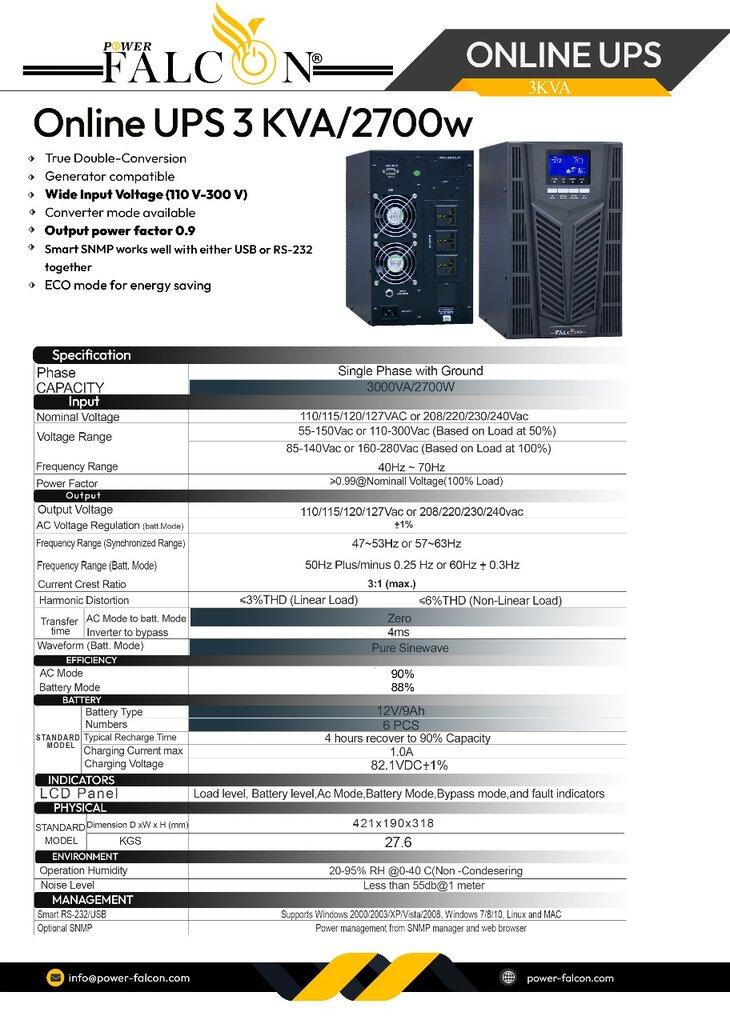

Online UPS 3 KVA / 2700w
True Double-Conversion
Generator compatible
Wide Input Voltage (110 V–300 V)
Converter mode available
Output power factor 0.9
Smart SNMP works well with either USB or RS-232 together
ECO mode for energy saving
Specification
Phase
Single Phase with Ground
CAPACITY
3000VA / 2700W
Input
Nominal Voltage: 110/115/120/127VAC or 208/220/230/240VAC
Voltage Range:
55–150Vac or 110–300Vac (Based on Load at 50%)
85–140Vac or 160–280Vac (Based on Load at 100%)
Frequency Range: 40Hz ~ 70Hz
Power Factor: >0.99 @ Nominal Voltage (100% Load)
Output
Output Voltage: 110/115/120/127VAC or 208/220/230/240VAC
AC Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 47–53Hz or 57–63Hz
Frequency Range (Batt. Mode): 50Hz ±0.25Hz or 60Hz ±0.3Hz
Current Crest Ratio: 3:1 (max.)
Harmonic Distortion: ≤3% THD (Linear Load), ≤6% THD (Non-Linear Load)
Transfer Time:
AC Mode to Batt. Mode: Zero
Inverter to Bypass: 4ms
Waveform (Batt. Mode): Pure Sinewave
Efficiency
AC Mode: 90%
Battery Mode: 88%
Battery
Battery Type: 12V/9Ah
Numbers: 6 PCS
Typical Recharge Time: 4 hours recover to 90% capacity
Charging Current (max): 1.0A
Charging Voltage: 82.1VDC ±1%
Indicators
LCD Panel: Load level, Battery level, AC Mode, Battery Mode, Bypass Mode, and Fault Indicators
Physical
Dimension (D×W×H mm): 421 × 190 × 318
Net Weight: 27.6 kg
Environment
Operation Humidity: 20–95% RH @ 0–40°C (Non-condensing)
Noise Level: Less than 55dB @ 1 meter
Management
Smart RS-232/USB: Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux and MAC
Optional SNMP: Power management from SNMP manager and web browser
