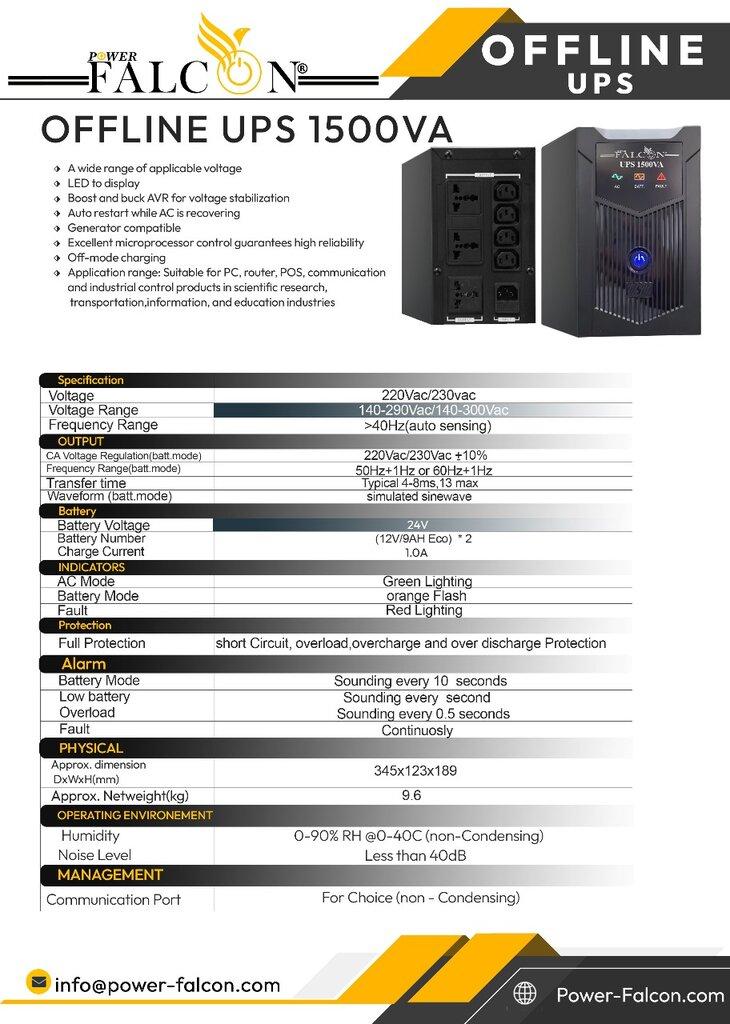

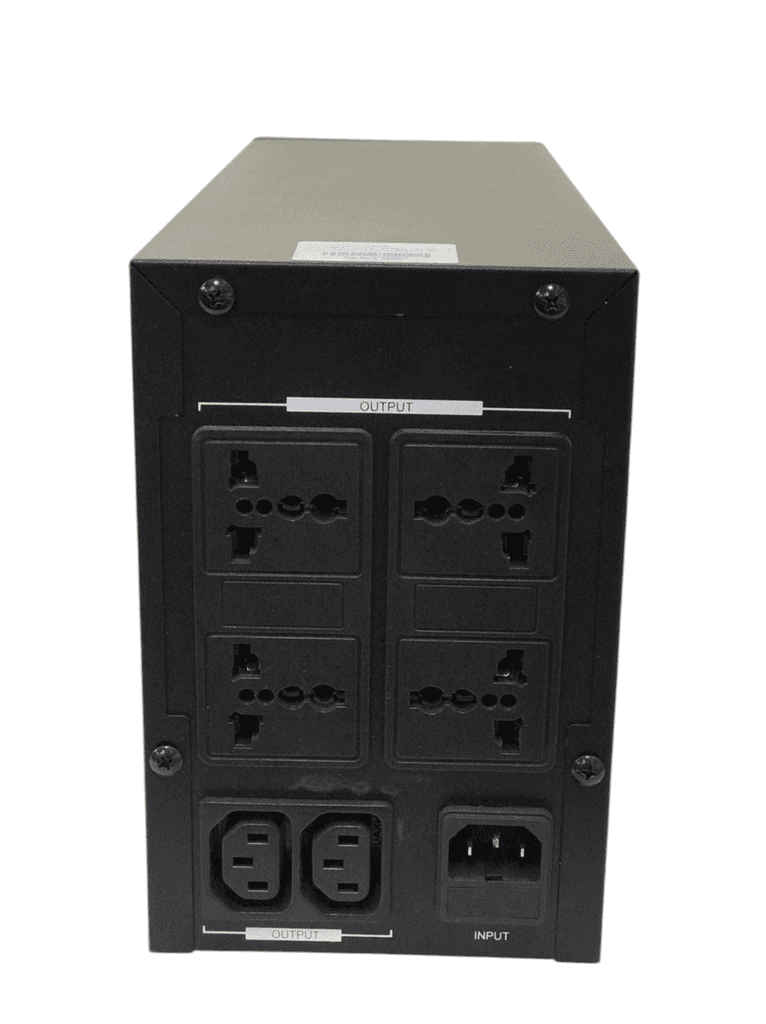

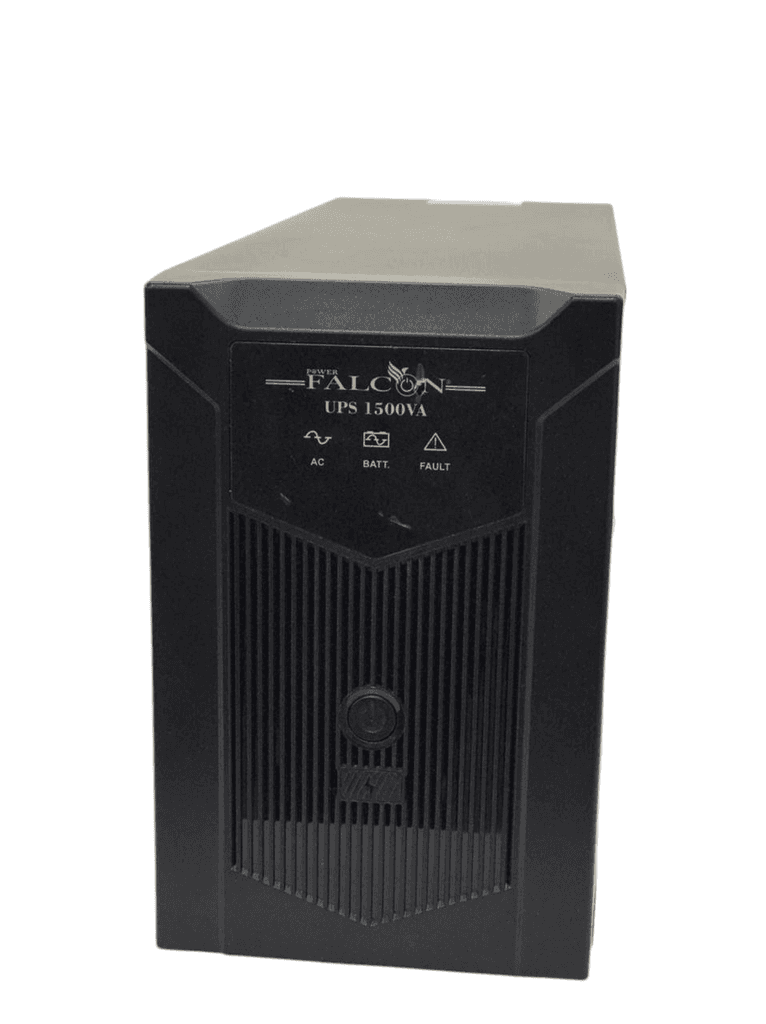

OFFLINE UPS 1500VA
A wide range of applicable voltage
LED to display
Boost and buck AVR for voltage stabilization
Auto restart while AC is recovering
Generator compatible
Excellent microprocessor control guarantees high reliability
Off-mode charging
Application range: Suitable for PC, router, POS, communication and industrial control products in scientific research, transportation, information, and education industries
Specification
Voltage
220Vac/230Vac
Voltage Range
140-290Vac / 140-300Vac
Frequency Range
40Hz (auto sensing)
OUTPUT
CA Voltage Regulation (batt. mode): 220Vac/230Vac ±10%
Frequency Range (batt. mode): 50Hz ±1Hz or 60Hz ±1Hz
Transfer Time: Typical 4-8ms, 13ms max
Waveform (batt. mode): simulated sinewave
Battery
Battery Voltage: 24V
Battery Number: (12V/9AH Eco) * 2
Charge Current: 1.0A
INDICATORS
AC Mode: Green Lighting
Battery Mode: Orange Flash
Fault: Red Lighting
Protection
Full Protection: short circuit, overload, overcharge and over discharge protection
Alarm
Battery Mode: Sounding every 10 seconds
Low Battery: Sounding every second
Overload: Sounding every 0.5 seconds
Fault: Continuously
PHYSICAL
Approx. Dimension (DxWxH mm): 345 x 123 x 189
Approx. Net Weight (kg): 9.6
OPERATING ENVIRONMENT
Humidity: 0–90% RH @0–40°C (non-condensing)
Noise Level: Less than 40dB
MANAGEMENT
Communication Port: For Choice (non-condensing)
